Vector Probe III - Downhole Pressure Recorder
The Vector Probe is in its 3rd generation downhole pressure recorder design. The Vector III has all the same leading edge features as our second generation downhole gauge design with a few extra improvements. Our new revolutionary communication module design gives you everything you need in the palm of your hand. When the communication module is connected via the supplied USB cable, your computer will recognize the tool as a standard Windows Flash Drive. You can also connect to the tool via Bluetooth to any Android tablet or mobile phone. Whatever method you choose you will be eliminating all driver issues previously experienced by every other tool manufacturer on the market.

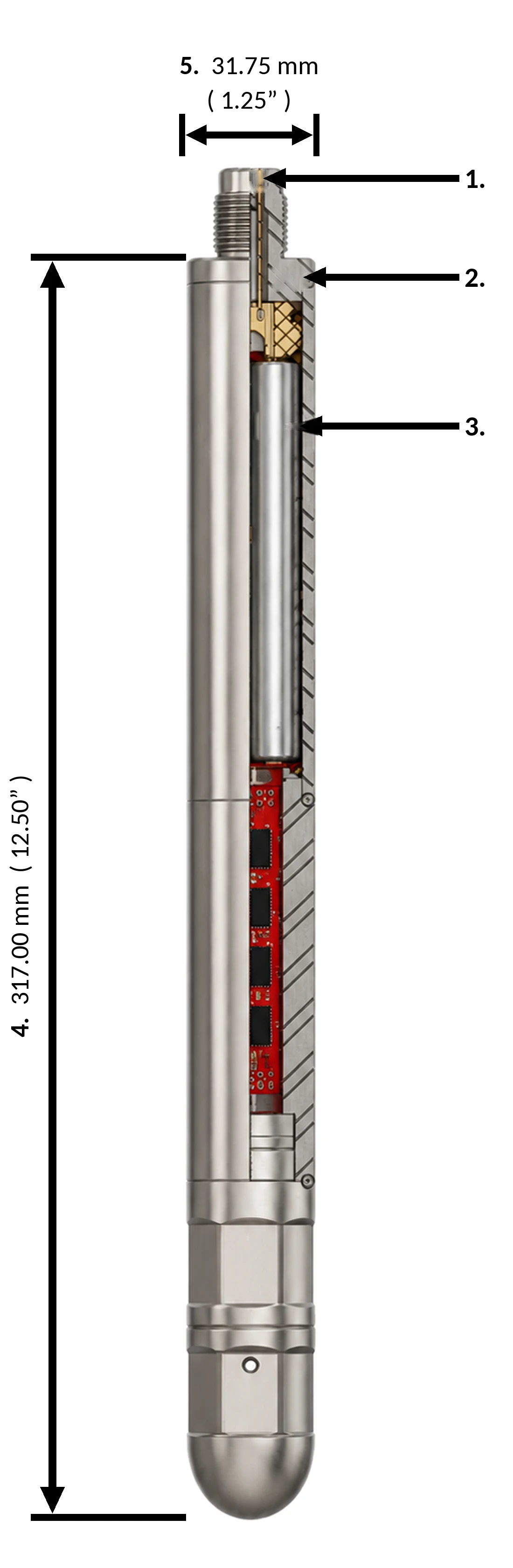

Features
- 1External USB Flash Style Interface (Embedded software w/ data management)
- 2Seamless Welded Construction (No o-ring seals)
- 3Hard Wired Internal Battery (Internal real-time clock)
- 4Tool Length (317.00 mm (12.50"))
- 5Tool Outer Diameter (31.75 mm (1.25"))
Specifications
Specifications
| Accuracy | 0.021% F.S. - 0.3 °C |
|---|---|
| Resolution | 0.0003% F.S. - 0.01 °C |
| Drift | <2.9psi Per Year - <0.09 °C Per Year |
| Transducer | Piezo-Resistive Silicon |
| Battery Type | Lithium |
| Battery Capacity | 13 Amp Hours |
| Battery Voltage | 3.67 Volts |
| Battery Life | 4 to 5 Years (Under Normal Conditions) |
| Memory Capacity | 16 Million Data Points |
| Sample Rate | 1 Sample Per Sec to 1 Sample Per 18 Hours |
| Housing Material | 17-4 Stainless Steel or Inconel |
| External Connection | 3/4-16 TPI (Amerada) |
Pressure and Temperature Ranges
| Pressure Ranges | Temperature Ranges |
|---|---|
| 3,000 psi (20,684 kPa) | 165 °C (330 °F) |
| 6,000 psi (41,368 kPa) | 165 °C (330 °F) |
| 10,000 psi (68,497 kPa) | 165 °C (330°F) |
| 15,000 psi (103,421 kPa) | 165 °C (330 °F) |
Accessories
- USB & Bluetooth Communication Module
- Vector Probe 316 Stainless Steel Bullnose
- Vector Probe 316 Stainless Steel Crossover
- Vector Probe Case Assembly
