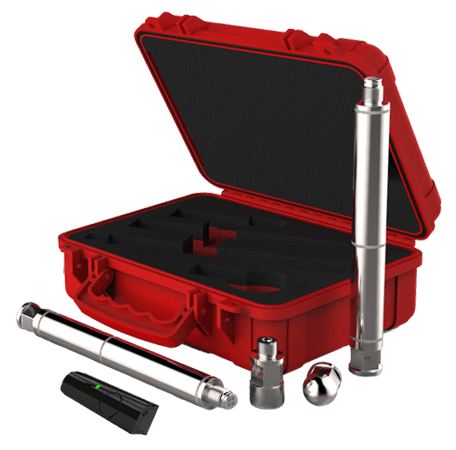

Vector Probe III
Vector Probe III (Replaceable Battery)
Vector Probe Slim

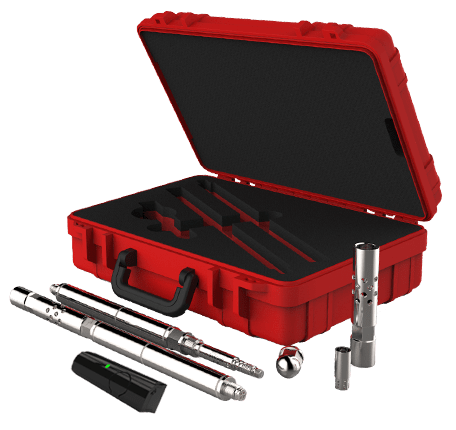

Vector Probe QU
PSG-1
PSG-2
PSG-3Compare specifications
Key specifications side by side. Open any product for the full spec sheet and brochure.
| Specification | Vector Probe III | Vector Probe III (R) | Vector Probe Slim | Vector Probe QU |
|---|---|---|---|---|
| Accuracy | 0.021% F.S. - 0.3 °C | 0.021% F.S. - 0.3 °C | 0.021% F.S. - 0.3 °C | 0.02% F.S. - 0.5 °C |
| Resolution | 0.0003% F.S. - 0.01 °C | 0.0003% F.S. - 0.01 °C | 0.0003% F.S. - 0.01 °C | < 0.00006% F.S. - < 0.005 °C |
| Drift | <2.9psi Per Year - <0.09 °C Per Year | <2.9psi Per Year - <0.09 °C Per Year | <2.9psi Per Year - <0.09 °C Per Year | <0.02 psi Per Year - <0.1 °C Per Year |
| Transducer | Piezo-Resistive Silicon | Piezo-Resistive Silicon | Piezo-Resistive Silicon | Quartzdyne Hybrid |
| Pressure ranges | 3,000 psi, 6,000 psi, 10,000 psi, 15,000 psi | 3,000 psi, 6,000 psi, 10,000 psi, 15,000 psi | 3,000 psi, 6,000 psi, 10,000 psi, 15,000 psi | 10,000 psi, 16,000 psi, 20,000 psi |
| Max temperature | 165 °C (330°F) | 165 °C (330°F) | 165 °C (330°F) | 165 °C (330°F) |
| Tool outer diameter | 31.75 mm (1.25" | 31.75 mm (1.25" | 19.05 mm (0.75" | 31.75 mm (1.25" |
| Tool length | 317.00 mm (12.50" | 381.00 mm (15.00" | 330.00 mm (13.00" | 429.00 mm (16.90")) - (475.00 mm (18.70")) w/ Bullnose |
| Battery | 13 Amp Hours, 4 to 5 Years (Under Normal Conditions) | 13 Amp Hours, replaceable C cell | 3.2 Amp Hours, 1 Year (Under Normal Conditions) | 13 Amp Hours, 4 to 5 Years (Under Normal Conditions) |
| Memory | 16 Million Data Points | 16 Million Data Points | 16 Million Data Points | 13 Million Data Points |
| Sample rate | 1 Sample Per Sec to 1 Sample Per 18 Hours | 1 Sample Per Sec to 1 Sample Per 18 Hours | 1 Sample Per Sec to 1 Sample Per 18 Hours | 1 Sample Per Sec to 1 Sample Per 18 Hours |
| Housing | 17-4 Stainless Steel or Inconel | 17-4 Stainless Steel or Inconel | 17-4 Stainless Steel or 718 Inconel | 17-4 Stainless Steel or 718 Inconel |
| Connection | 3/4-16 TPI (Amerada) | 3/4-16 TPI (Amerada) | 1/2 - 13 TPI | 3/4-16 TPI (Amerada) |
| Specification | PSG-1 | PSG-1(E) | PSG-2 | PSG-3 |
|---|---|---|---|---|
| Accuracy | 0.05% F.S. - 0.3 °C | 0.05% F.S. - 0.3 °C | 0.05% F.S. - 0.3 °C | 0.05% F.S. - 0.3 °C |
| Resolution | 0.0003% F.S. - 0.01 °C | 0.0003% F.S. - 0.01 °C | 0.0003% F.S. - 0.01 °C | 0.0003% F.S. - 0.01 °C |
| Pressure ranges | 3,000 psi, 6,000 psi, 10,000 psi | 3,000 psi, 6,000 psi, 10,000 psi | 3,000 psi, 6,000 psi, 10,000 psi | 3,000 psi, 6,000 psi, 10,000 psi |
| Temperature | -30°C to 85°C | -30°C to 85°C | -30°C to 85°C | -30°C to 85°C |
| Bluetooth | Yes - 10 Meter Range | Yes - 100 Meter Range | Yes - 100 Meter Range | Yes - 100 Meter Range |
| Cellular (GSM) | No - Only Available in PSG-2 Models | No - Only Available in PSG-2 Models | Yes - Sim Card Not Included | No - Only Available in PSG-2 Models |
| GPS | No - Only Available in PSG-3 Models | No - Only Available in PSG-3 Models | No - Only Available in PSG-3 Models | Yes - Location Data Embedded In Job File |
| USB | Yes - Windows XP and Later | Yes - Windows XP and Later | Yes - Windows XP and Later | Yes - Windows XP and Later |
| Memory | 16 Million Samples | 16 Million Samples | 16 Million Samples | 16 Million Samples |
| Sample rate | 1 Second to 18 Hours | 1 Second to 18 Hours | 1 Second to 18 Hours | 1 Second to 18 Hours |
| Gauge height | 7.3" (185 mm) | 13.0" (330 mm) | 13.0" (330 mm) | 7.3" (185 mm) |
| Gauge weight | 4.5 lbs (2.0 kg) | 5.5 lbs (2.5 kg) | 5.5 lbs (2.5 kg) | 4.5 lbs (2.0 kg) |
| Hazardous area | Class I Division 1, Groups C & D, T5 | Class I Division 1, Groups C & D, T5 | Class I Division 1, Groups C & D, T5 | Class I Division 1, Groups C & D, T5 |
